Intel Socket 115X/ 1200 94x56 (D15N series)

D15N series
(for LGA 115X/ 1200 94x56 Narrow series)

D15N stands for the “Narrow series” in REGO coolers for satisfying 94x56 mm mounting layout needed by Intel LGA115X/ 1200 series and indicated to our RG4124 families.

[Meets]
1U – 1.5U Coolers, TDP : 95 Watts

[Features & Benefits]
-- Better for PCB placement
-- VC Base for higher heat dissipation
-- Lower profile for height-limited chassis

>> Target Market <<
AI Edge Computing
Medical Computing
Gaming mini PC
Industrial BOX PC
Embedded Boards

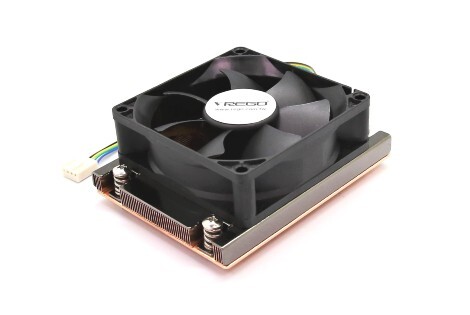

P/N : RG4124

TDP: 95W
Outline Dimension : 106 x 82 x 27.5 mm
Heat Sink : Stacked Copper Fin / Vapor Chamber Base
Fan : 80 x 80 x 15 mm, Two Ball Bearing, 5000RPM, Noise Level : 45dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.28 ℃/W
Weight : 382 g

2D 3D Report

P/N : RG4124-33

TDP: 95W
Outline Dimension : 106 x 82 x 32.5 mm
Heat Sink : Stacked Copper Fin / Vapor Chamber Base
Fan : 80 x 80 x 20 mm, Two Ball Bearing, 5500RPM, Noise Level : 53.46dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.33 ℃/W
Weight : 396 g

2D 3D Report

P/N : RG4124-38

TDP: 95W
Outline Dimension : 106 x 82 x 37.5 mm
Heat Sink : Stacked Copper Fin / Vapor Chamber Base
Fan : 80 x 80 x 25 mm, Two Ball Bearing, 4800RPM, Noise Level : 48dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.29 ℃/W
Weight : 415 g

2D 3D Report

Features

>> Better for PCB replacement
>> Long term supply
>> Fast samples
>> Low profile available
>> Higher heat dissipation allowed

Specification

Part Number	RG-4124	RG4124-33	RG4124-38
CPU Socket	Intel Desktop 115X/ 1200 95W	Intel Desktop 115X/ 1200 95W	Intel Desktop 115X/ 1200 95W
Outline Dimension (mm)	106 x 82 x 27.5 mm	106 x 82 x 32.5 mm	106 x 82 x 37.5 mm
Rth (℃/W)	0.28	0.33	0.29
Fan Spec	80x80x15mm/ 4way/ 5000 RPM/ 45dB(A)	80x80x20mm/ 4way/ 5500 RPM/ 53.46dB(A)	80x80x25mm/ 4way/ 4800 RPM/ 48dB(A)
Heat Sink Material	Copper Stacked Fin with Vapor Chamber base	Copper Stacked Fin with Vapor Chamber Base	Copper Stacked Fin with Vapor Chamber Base
