Intel IoT series

Intel IoT series

Product Series
-Cooler Size : 30mm x 30mm/ 40mm x 40mm x 20mm(H)
-TDP : 10 Watts to 20 Watts

Features & Benefits
-High quality, Lower noise level
-Long term supply
-Semi-customization available

Target Market -
-IoT, Networking, Surveillance, Embedded Boards

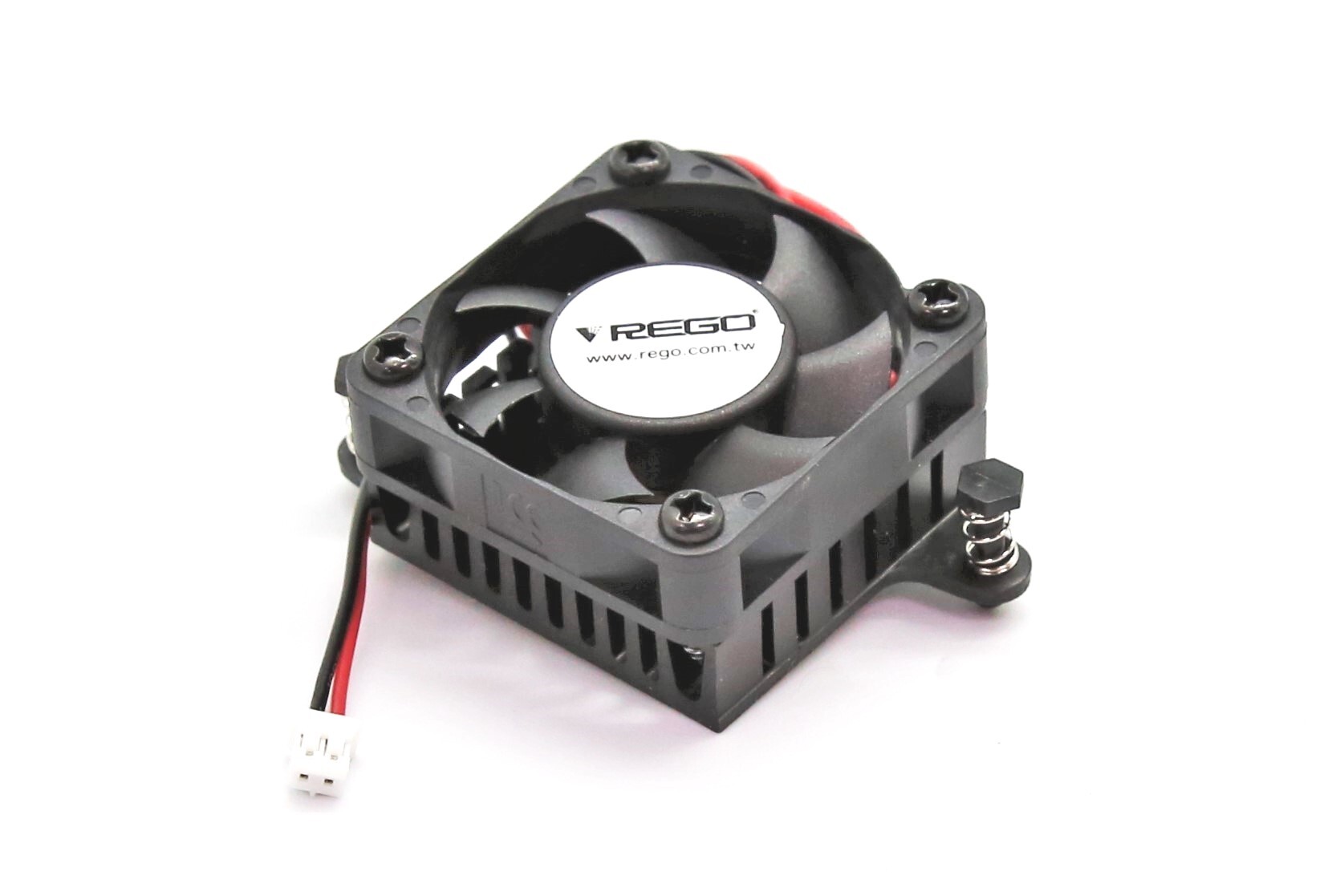

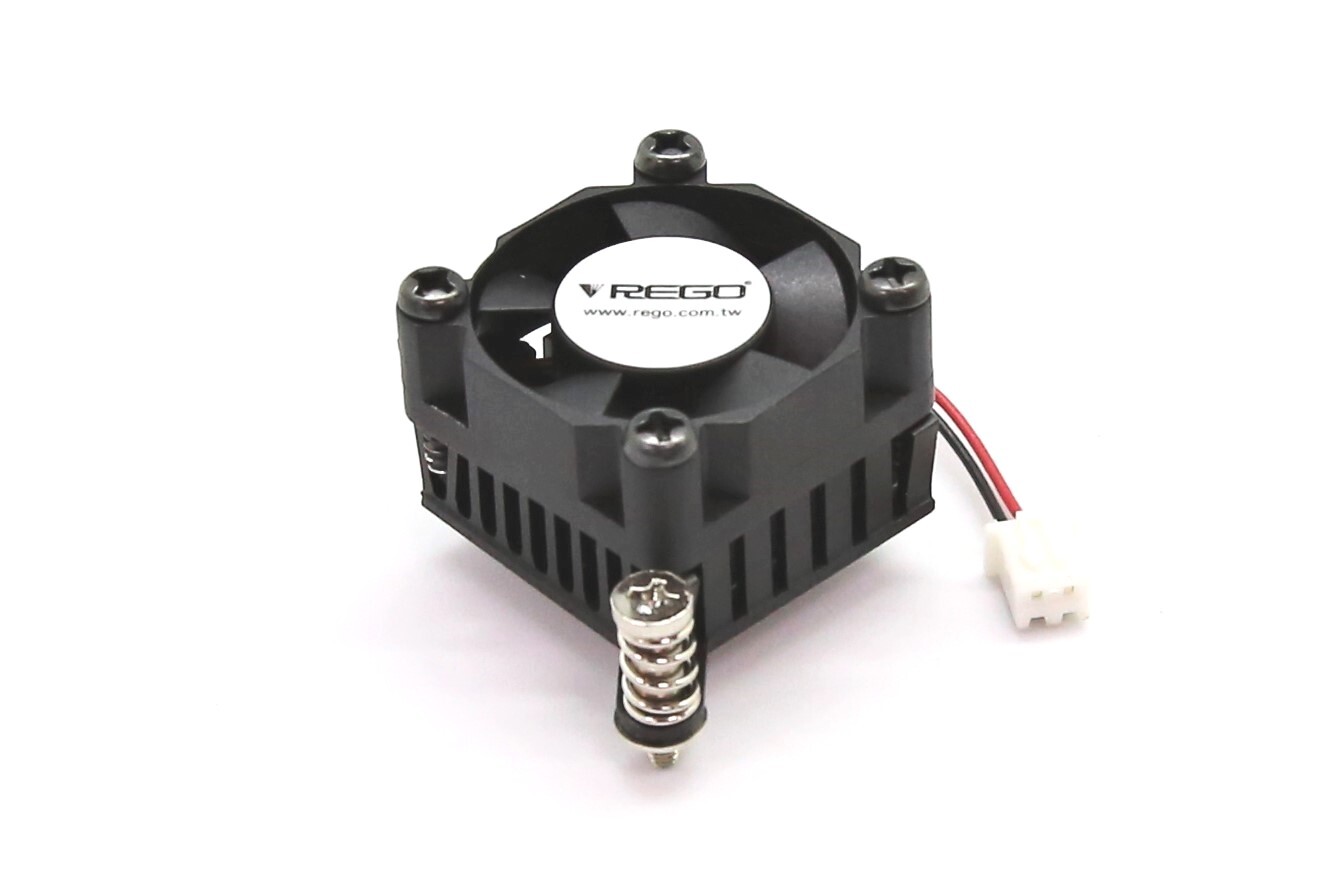

ACLE3030-2000119FA+T725

Outline Dimension : 40.5 x 31 x 20.5mm
Heat Sink : Extruded Aluminum
Fan : 30 x 30 x 10.5 mm, Two Ball Bearing, 11,000 RPM, Noise Level : 38.61 dB(A)
Connector Type : JST-XH2.5-2P
Thermal Resistance : 3.07 ℃/W
Weight : 20 g

2D 3D Report

RG8400-A

Outline Dimension : 57.8 x 40 x 20.5 mm
Heat Sink : Extruded Aluminum
Fan : 40 x 40 x 10.5 mm, Two Ball Bearing, 5800 RPM, Noise Level 20.6 dB(A)
Connector Type : JST-PH2.0-2P
Thermal Resistance : 2.37 ℃/W
Weight : 35 g

2D 3D Report

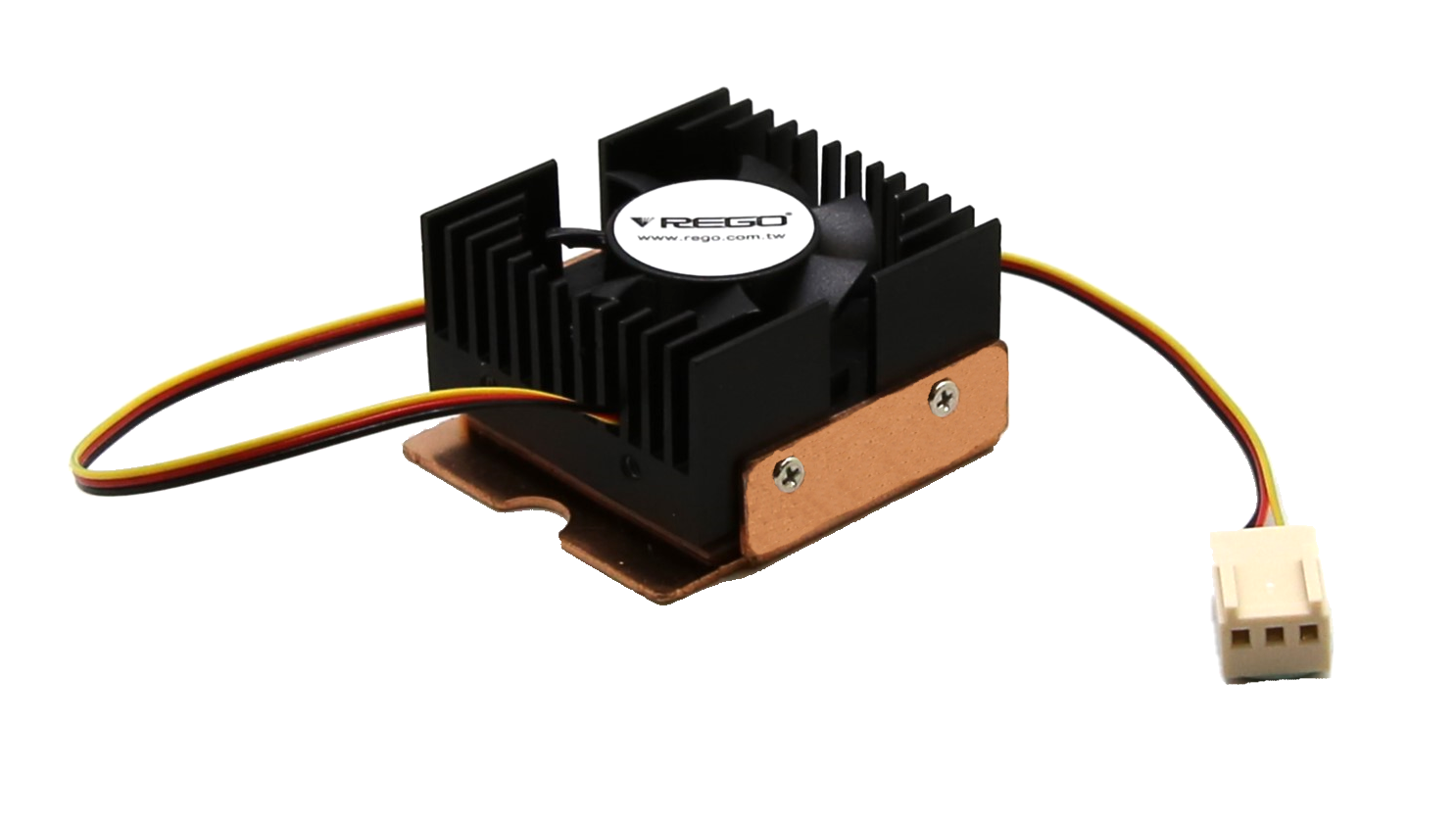

RGW111-CP-A
[M.2 -- 5G Wifi Module]

Outline Dimension : 33 x 33 x 16.8 mm
Heat Sink : Extruded Aluminum
Fan : 30 x 30 x 10 mm, Two Ball Bearing, 12500 RPM, Noise Level 37 dB(A) max.
Connector Type : 2510-3P
Thermal Resistance : 0.76 ℃/W
Weight : 46 g

2D 3D Report

Rego's IoT coolers are a series of cooling solutions for IoT processors and multi-functional chips. These products are well designed in thermal performance based on our professional manufacturing know how. We have the sophisticated equipment to precisely measure its performance for meeting your requirements perfectly. Rego not only provides off the shelf standard products as quick options, but also customizes thermal solutions according to your specifications.
Part Number ACLE3030-2000119FA+T725 RG8400-A RGW111-CP-A
CPU Socket IoT IoT IoT / M.2 5G Wifi Module
Outline Dimension (mm) 40.5x31x20.5 57.8x40x20.5 33x33x16.8
Rth (℃/W) 3.07 2.37 0.76
Fan Spec Axial 3010/ 2 Ways/ 38.61dBA Axial 4010/ 2 Ways/ 20.6 dBA Axial 3010/ 3 Ways/ 37.0 dBA
Heat Sink Material Extruded aluminum Extruded aluminum Extruded aluminum
ACLE3030-2000119FA+T725
PDF
RG8400-A
PDF
RGW111-CP-A
PDF
